Explore the technical specifications and features of our drilling rigs.

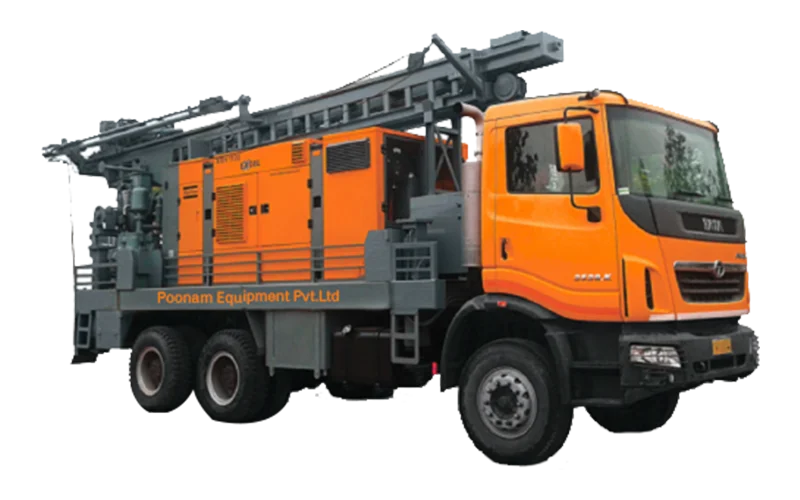

The DTH Combination Drilling Rig is engineered to perform both DTH and rotary drilling operations, offering unmatched versatility for diverse drilling applications. Its multi-functional design enables efficient drilling across varying geological formations, reducing the need for multiple machines on-site.
Equipped with a robust hydraulic system, precision controls, and a powerful rotary head, the combination rig ensures smooth operation, increased productivity, and dependable performance. It is widely used in water well drilling, exploration, mining, and construction industries.
| Sr.no | Particulars | Description |
|---|---|---|
| 1 | Mast | 10 x 3 Channel Mast with 15ft Rod Handling Capacity, with Centre PTO |
| 2 | Platform | 5mm Checker Plate use for Plateform |
| 3 | Depth Capacity | 1500Ft with Bore Dia 6" to 10" inch 500ft with Bore Dia 12" to 14" |
| 4 | Rotary Head Gear Box | Rotary Head Gear Box with Two [2 Nos.] Motors - 315 M+S |
| 5 | Hydraulic Cylinders & Jacks | Main Feed Cylinder 180mm Wipro/L&T Leveling Jack 140mm (Stabilizer) - Dantal Mast Rising Jack 160mm - Dantal Spanner Jack - Dantal |
| 6 | Oil Cooler | Aluminium Oil Cooler with Electric Fan 12v DC |
| 7 | Water Injection Pump | Water Injection Pump 120Liter with 200cc Motor |
| 8 | Valves | Main Valve - Commercial Parker 2 Spool - 1 Nos., 3 Spools - 1 Nos. |
| 9 | Hydraulic Pump | Hydraulic Pump 65 Galan Cassapa Italian - 2 Nos. |
| 10 | Tank | Oil Tank 800 Ltr |
| 11 | Winch | Winch capacity 1 Ton - 1 Nos. |
| 12 | Welding Generator | 200 Amp Welding Generator Ashok Brand Hydraulic Operated with |
| 13 | Tools & Accessories | Rod Guide = 1 Nos. Rod Adaptor = 1 Nos. Rod Carrier = 1 Nos. Rod Spanner = 2 Nos. Level Jack Support Table = 4 Nos. |
