Explore the technical specifications and features of our drilling rigs.

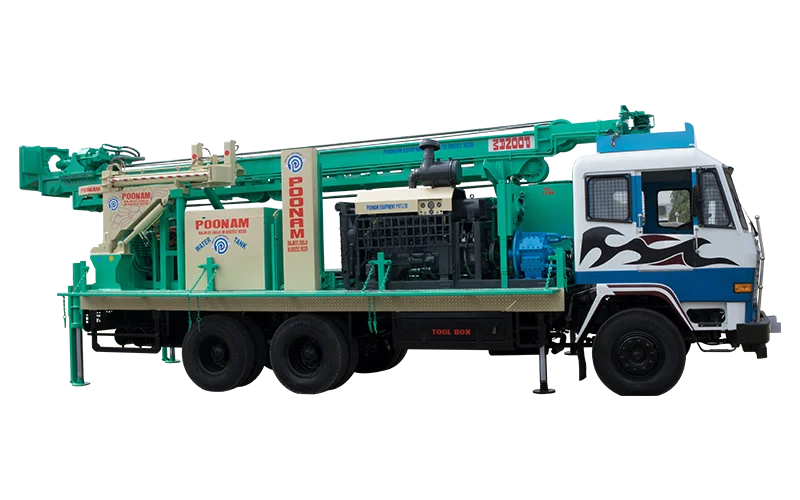

Our DTH Drilling Rig with Hydraulic Rod Changer is designed to maximize drilling productivity while minimizing manual intervention. The automatic hydraulic rod changing system enables faster rod handling, improving operator safety and significantly reducing drilling cycle time. Built on a heavy-duty chassis, this rig delivers reliable performance in demanding geological conditions.
Powered by advanced hydraulic technology and a high-torque rotary head, the rig provides excellent drilling accuracy, superior penetration, and long-lasting durability. It is ideal for water well drilling, mining, construction, and geotechnical exploration projects where efficiency and operator comfort are essential.
| Sr.no | Particulars | Description |
|---|---|---|
| 1 | Applications | Water Well |
| 2 | Soil Formation | Soft & Hard |
| 3 | Bore / Hole Diameter | 6" to 10" Inches |
| 4 | DTH Machine Depth Capacity of Bore | Up to 3000 Feet |
| 5 | Power for DTH Drilling Rig Operation | Deck Engine Ashok Leyland 188HP [ or as Per Customer Choice ] |
| Engine Propeller Shaft Attached with Heavy Duty Radial Piston Pump [L&T Hyd. Make] | ||
| or | ||
| Engine Propeller Shaft Attached with PTO Gear Box with Total 4 Nos. Pumps | ||
| Main Pumps Branded 65 gallon - 2 Nos. & Other Pumps Branded 110cc - 2 Nos. | ||
| 6 | Truck | Ashok Leyland 2523 6x4 Rig chassis or Ashok Leyland 2818 6x4 Rig chassis |
| 7 | Hydraulic System Pressure | Maximum Working Pressure 230 kg/cm² |
| 8 | Rod Changer System | New Latest Design Highspeed Hydraulic Operated Rod Lifter and Rod Changer Boom |
| 9 | Mast | Box Type 10" x 3" Channel Structure |
| Rod Handling Capacity - 15 Feet [ 4.5 Meters ] | ||
| Max Capacity - 20 Tons | ||
| Max Height - 8.23 Meter [ 27 Feet ] | ||
| Rotary Head Gear Box Slider - Casting Patta-Plate Pouch Type | ||
| 10 | Rotary Head Gear Box | Rotary Head Gear Box Powered with Two Orbital OMT 315 or OMT 400 Hydraulic Motors |
| Maximum Rotation Speed : 0-160 RPM | ||
| 11 | Main Hydraulic Cylinders | 180mm / 200mm Hydraulic Cylinder for Mast Feed Cylinder Branded - 1 Nos. |
| 160mm Hydraulic Cylinder for Mast Raising Branded - 1 Nos. | ||
| 140mm Stabilizer / Leveling Hydraulic Cylinder Branded - 4 Nos. | ||
| 70mm Back Outer Hydraulic Cylinder Branded - 1 Nos. | ||
| 12 | Main Control Valves | Commercial Parker Valves - 2 Nos. |
| 13 | Other Control Valves | Hydrocontrol Valves - 2 Nos. |
| 14 | Tanks | Hydraulic Oil Tank capacity 700 Liters |
| Water Tank capacity 700 Liters | ||
| Fuel [Diesel] Tank capacity 400 Liters | ||
| 15 | Pipeline Circuit for Hydraulic oil | Branded Seamless Pipes |
| 16 | Hydraulic Hose | Hydraulic Constant Working Pressure hose 4SH 5000 PSI |
| 17 | Hydraulic Oil Cooler | 110 GPM Hydraulic Oil Cooler |
| 18 | Water Injection Pump | 200 LPM Branded Water Injection Pump Driven by Hydraulic Motor |
| 19 | Welding Generator | 200AMP or 400AMP Branded Welding Generator |
| 20 | Airline Lubricator | 20 liters Tank |
| 21 | Winch Motor | 1 Ton |
| 22 | Hammer Opening Device | Drill Pipe [Rod] Suitable |
| 6" to 8" Inches [150mm to 210mm] Hammer Opening Capacity | ||
| 4.5", 5", 5.5" Size Drill Pipes, Length 15ft | ||
| 23 | Compressor Recommended | Up to 2000 Feet Drilling - 1200 CFM Air Compressor or as per customer's special requirement |
| 2000 to 3000 Feet - Need two air compressor's combine air for deep drilling |
